V-Rim (F-2674) See Fig. A
Sparkler® Heavy duty construction, V-Rim, consists of two perforated sheets with channel support and V-Rim capping channel over wire mesh orunder cloth cover. The plate is of full welded construction and provides free drainage and low pressure drop. This is our most rigid filter plate design for wetand dry cake discharge.
Tubular Slit Keyhole Channel (F-4038) See Fig. B
Sparkler® Lighter duty construction, Tubular Slit, consists of an expanded slot perforated sheet with solid round rods inserted at each point where the sheet is welded to the drainage channel. Rods are also welded along the face of the plate, on both sides, for added rigid support. The heavy gauge keyhole channel allows full flow and minimum restriction. For wet cake discharge only.
Spiral Conveyor Mesh Support (F-4039) See Fig. c
Sparkler® alternate lighter duty construction, consists of spiral conveyor mesh and channel supports between two perforated sheets with a V-Rim capping channel over wire mesh or under a cloth cover. The plate is of full welded construction and provides free drainage and a low pressure drop. This is a lower cost, rigid filter plate for wet cake and dry cake discharge.

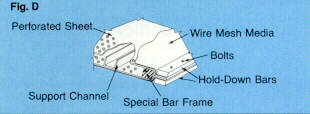

T-Bar (18575-a) See Fig. D
The Sparkler® T-Bar has heavy duty construction with removable cloth or wire mesh media for on-the-spot, quick replacement. It has all of the same features os the V-Rim design. For wet cake and dry cake discharge.
