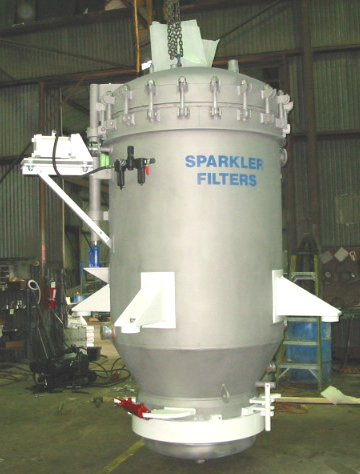

The Sparkler® Model VF Filter is a vertical plate/vertical tank filter specially designed for performance in areas with restricted floor space. It can be easily adapted to achieve a variety of results in a wide range of applications. The rigid filter plate design is economical and designed for minimal maintenance.
The VF filter plates may be cleaned without opening the filter vessel. This may be accomplished using a fixed overhead sluice to wash the cake off the plates (wet cake discharge), or via a vibrator connection which will shake the cake off of the plates (dry cake discharge).

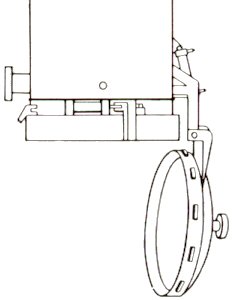

Sparkler® offers a variety of options which can be added to the VF filter. Hydraulically operated quick opening covers and bottom drop out doors are available. Steam coils or jackets are easily adapted. All equipment and accessories can be furnished skid-mounted and ready for start-up complete with pump and motor, slurry feed equipment and tank.
